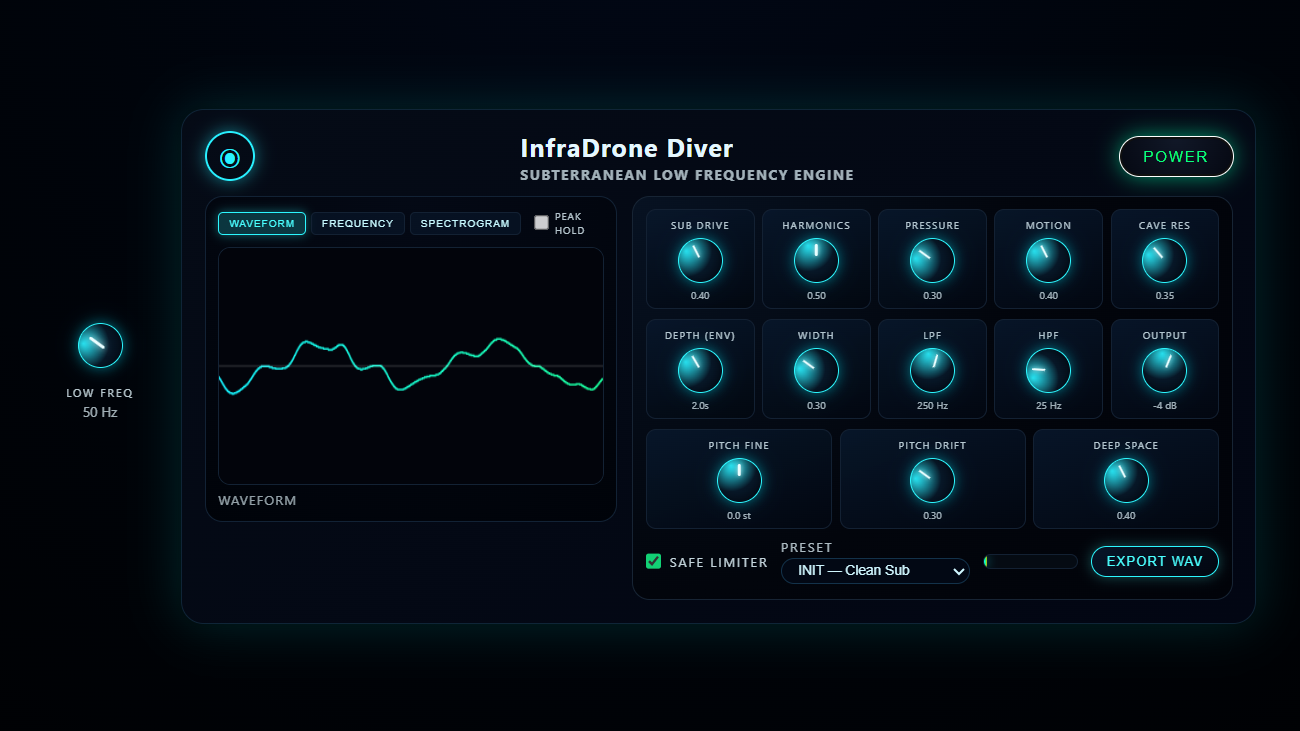

INFRADRONE

DIVER



---

InfraDrone Diver is a specialized synthesizer for deep, sub-bass textures and subterranean sound design. Built for producers and sound designers who need precise and controlled low-frequency sound sculpting.

---

Core Architecture

The engine is based on a multi-oscillator structure: a primary oscillator combined with three sub-harmonic generators covering the 2nd, 3rd and 4th harmonics. The frequency range spans from 20 to 120 Hz, with harmonic mixing options and fine pitch control of ±12 semitones.

Saturation and drive are powered by a WaveShaper with 4× oversampling, offering controlled harmonic enhancement. Additional pressure gain provides more intensity when needed.

Spatial processing includes a comb-filter cave resonance, adjustable stereo width through micro-delays, and a Deep Space high-shelf filter for enhanced low-frequency presence.

---

Modulation and Movement

InfraDrone Diver features a dual-LFO system: one for rhythmic movement and one for organic pitch drift. Each modulation path includes independent depth and rate control.

The envelope section offers variable attack and release from 0.1 to 5 seconds, ensuring smooth transitions ideal for drones and ambient textures.

---

Frequency Shaping

The filter section provides a three-stage shaping process: a high-pass filter between 15 and 70 Hz to tame subsonic content, a low-pass filter from 60 to 400 Hz to control upper harmonics, and a Deep Space EQ for enhancing low-end clarity.

---

Professional Features

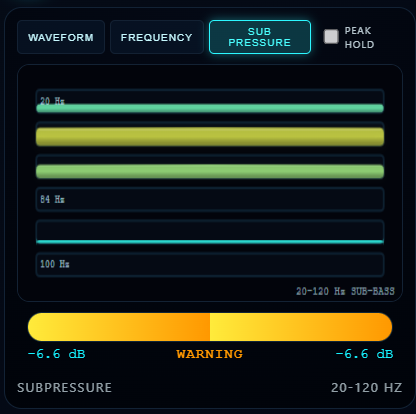

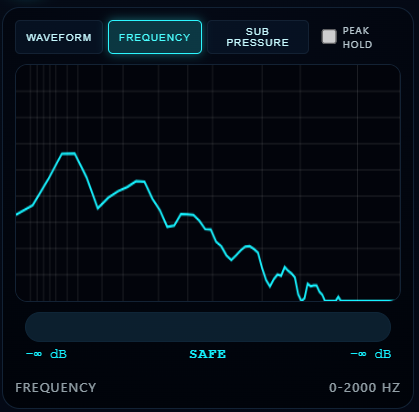

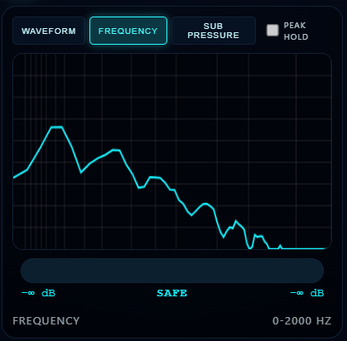

Real-time visualization includes waveform monitoring, FFT peak-hold analysis, and a scrolling spectrogram for detailed frequency observation.

High-quality export supports WAV output up to 48 kHz, with offline rendering and export durations up to 60 seconds.

Safety tools such as a master limiter prevent clipping, supported by master gain control ranging from -18 dB to +6 dB. A preset system includes eight professionally designed patches.

---



Presets Included

Cavern, Industrial, Underworld, Titanic, Abyss, Ritual, and Horror. Each preset highlights a different aspect of deep-frequency synthesis, from organic drones to intense pressure-based textures.

---
